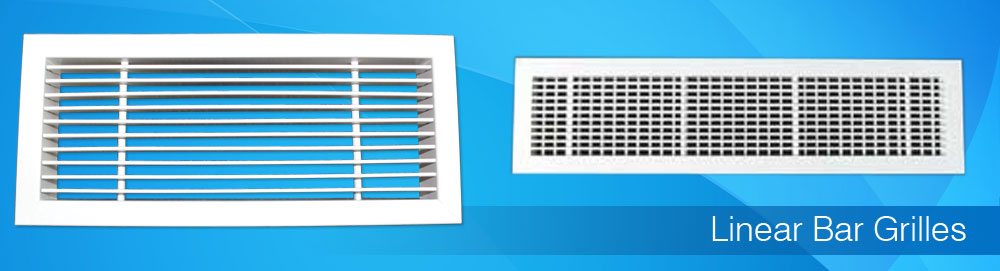

Linear Bar Grilles

The Airmax central air conditioning linear bar designed for various throw level and variety of standerd and fixed deflections of air flow. Liner bar grilles are mainly used in the side walls of the air-conditioning buildings to ensure the uniform air flow with minimized noise level. Linear bar registers supplied with opposed blade dampers with adjustable rear aerofoil blades.

Supply air Linear Bar Grilles

Description

• Frame and face bars are of high quality extruded aluminum profiled constriction with the advantages of corroding resistance and rigidity.
• Horizontal face bar with 0°, 15°- 1 way throw and 15°-2 way throw are fixed rigidity to the frame with 8 mm pipes.
• Vertical aluminum aerofoil blades are fixed at the rear side of the frame by nylon bushes. These blades can be adjusted manually and individually in the vertical panel to obtain optimum air distribution.
• Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight- line appearance.
• Supplied with C – clamps for concealed fixing.

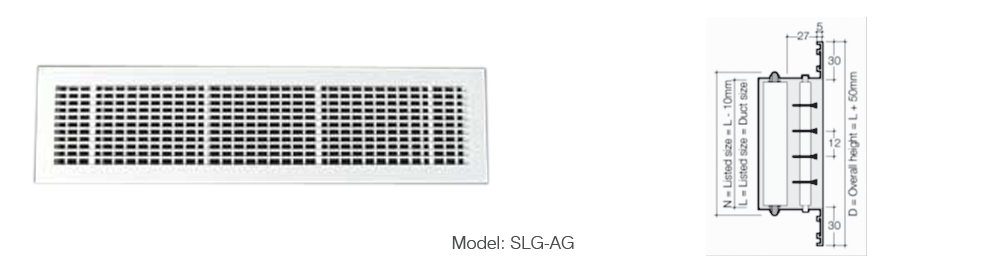

Construction

• Extruded aluminum profile frame with 30 mm flange width and 45 mm height
• 4mm, 5mm&6mm face width and 18mm height aluminum extruded blades.
• Extruded aluminum profile with 18mm height and aerofoil shaped.
• 0°, 15° single way & double way & 35° single way deflection front blades.
• 50mm to 300mm width (or height) with 50mm increments as standard.
• Any length from 200 to 6 Mt

Return air Linear Bar Grilles

Description

• Frame and face bars are of high quality exrtuded aluminum profiled construction with the advantages of corroding resistance and rigidity.
• Horizontal face bar with 0°, 15°- 1 way throw and 15°-2 ways throw are fixed rigidity to the frame with 8 mm pipes.
• Vertical aluminum aerofoil blades are fixed at the rear side of the frame by nylon bushes. These blades can be adjusted manually and individually in the vertical panel to obtain optimum air distribution.
• Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight- line appearance.
• Supplied with C – clamps for concealed fixing.

Construction

• Extruded aluminum profile frame with 30 mm flange width and 45 mm height
• 4mm, 5mm&6mm face width and 18mm height aluminum extruded blades.
• Extruded aluminum profile with 18mm height and aerofoil shaped.
• 0°, 15° single way & double way & 35° single way deflection front blades.
• 50mm to 300mm width (or height) with 50mm increments as standard.
• Any length from 200 to 6 Mt
