Ceiling Diffusers

The Airmax central air conditioning double & single deflection grilles are purpose designed for first-class performance in supply or return air system.

• The frontset of blade can be supplied in either a horizontal or vertical orientation, on double deflection grilles the rear are fixed in the opposite orientation to the front set.
• Special grille types include a hinged filter assembly and curved grille suitable for circular duct installation.
• Accessories include an opposed blade damper, finished in matt RAL 9005 black color.
• As standard the grille is supplied in either off white RAL 9010 or white RAL 9016 polyester powder paint.
• Alternative colors are available on special request, at extra cost.

Construction

Frame: High quality extrude aluminum profile with 30 mm flange width as standard.20, 24mm flange widths are optional
Blades: Aerofoil blade from aluminum profiles.
Blade Spacing: As standerd all single or double deflection blade are set on a pitch of 20 mm and blades are mannually adjusted. To ensure smooth operation and easy setting each blade is mounted in nylon bushes.
Fixing: Standerd installation method is by front screw fixing or with concealed spring clips.

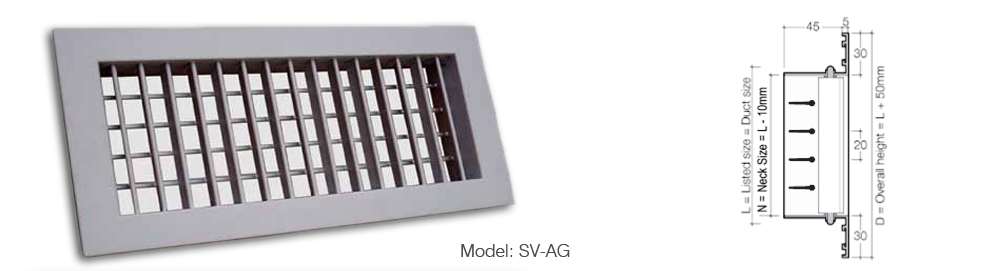

Double deflection register

• Horizontal front face blade
• Vertical rear blades
• If the grill width more than 500mm, a million will be fixed at the center and for widths of one meter and above, the number of mullions will be two or more.

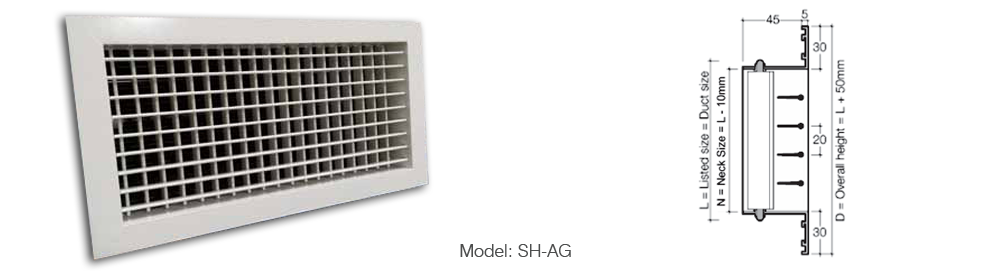

• Vertical front face blade
• Horizontal rear blade
• If the grill width more than 500mm, a million will be fixed at the center and for widths of one meter and above, the number of mullions will be two or more.

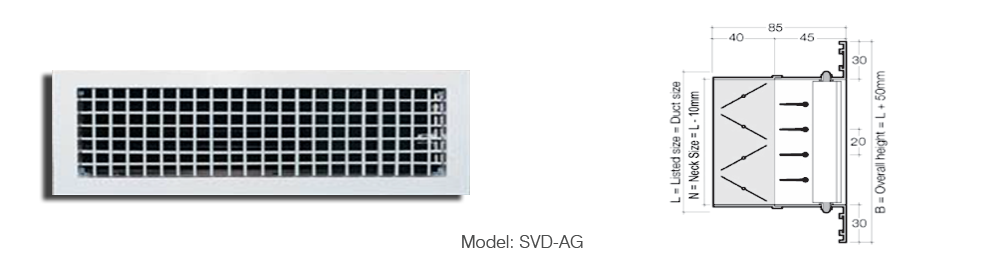

Double deflection register

• Horizontal front face blade with damper
• Vertical rear blades
• If the grill width more than 500mm, a million will be fixed at the center and for widths of one meter and above, the number of mullions will be two or more

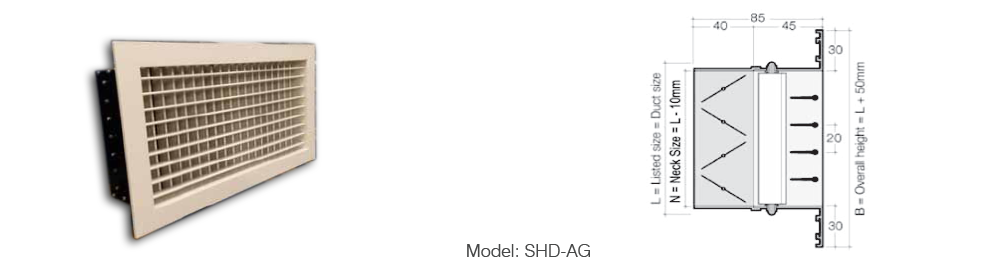

• Vertical front face blade with damper
• Horizontal rear blades
• If the grill width more than 500mm, a million will be fixed at the center and for widths of one meter and above, the number of mullions will be two or more
